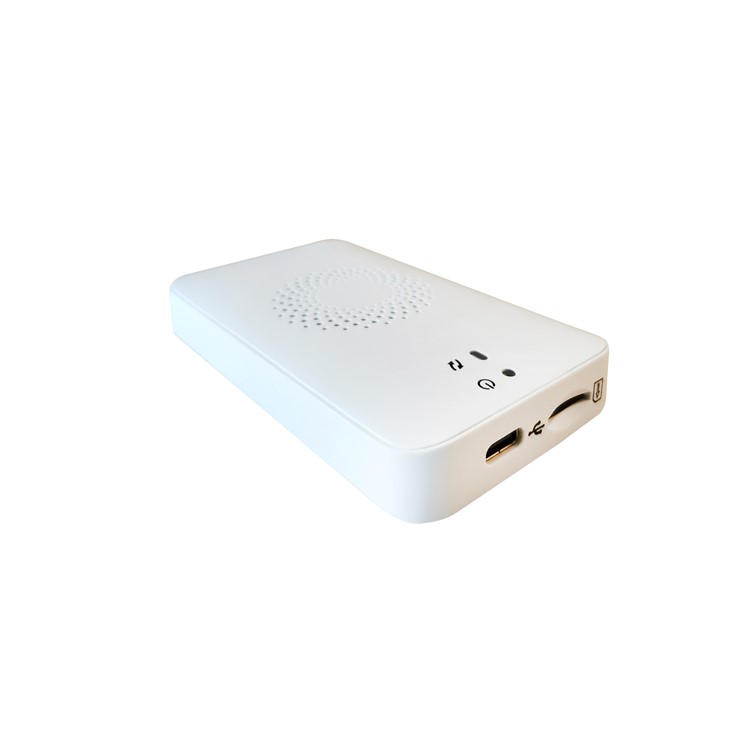

HocellM2105GUSBDongle1-mini

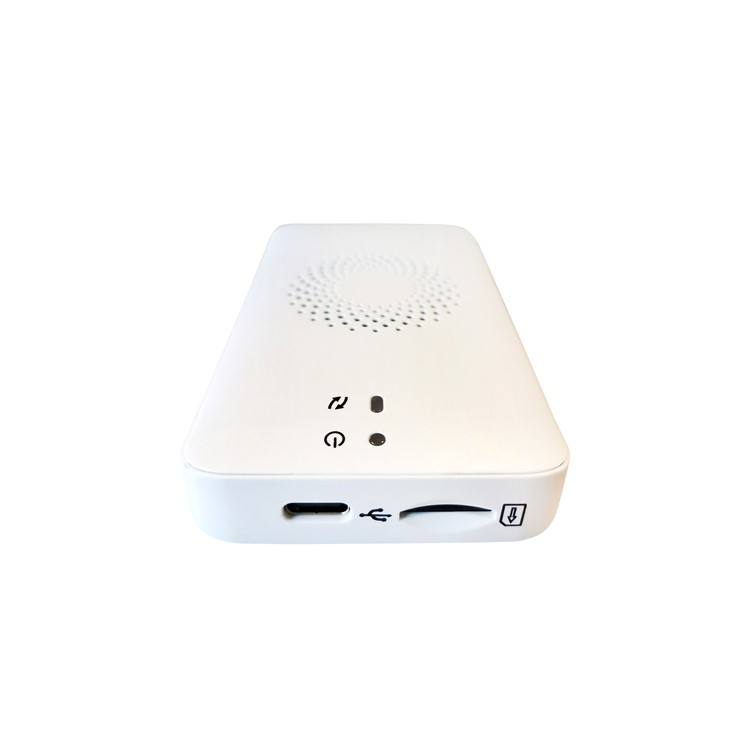

HocellM2105GUSBDongle2-mini

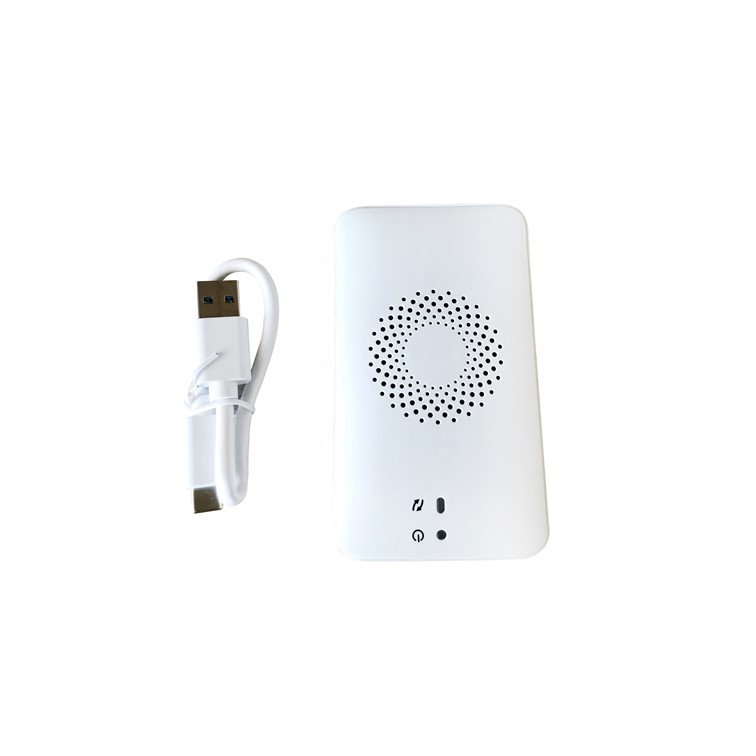

HocellM2105GUSBDongle3-mini

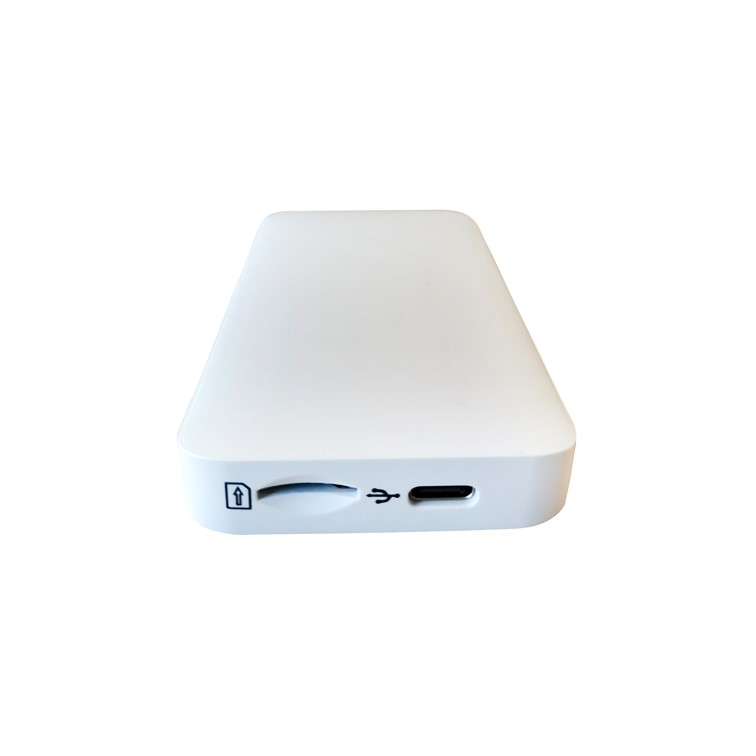

HocellM2105GUSBDongle4-mini

5G Dongle M210

M210 is a 5G USB dongle based on Qualcomm SDX55 5G modem, supporting 5G NR SA&NSA, LTE and 3G network standards of most countries. It can provide superfast cellular internet connection for PC and other industrial terminals with Windows or Linux operating systems.

 Overview



The 5G Dongle M210 is a high-performance 5G modem based on Qualcomm SDX55 chipset. It supports 5G, LTE and 3G networks from telecom service providers of most countries in the world. The USB Type-C interface is adopted to power the device and transmit high-speed internet data converted from cellular SIM card.



M210 is suitable for personal or industrial users to connect their PC or industrial terminals to 5G/LTE mobile networks and enjoy the super-fast internet connection in the home, office, outdoors or on the way, for either entertainment, study or professional purpose.



Hardware & Radio Specification



Item

Description

Chipset

Qualcomm SDX55, Arm Cortex-A7 up to 1.5 GHz, Cortex-A7 – primary boot processor

RF Standard

 5G NR SA&NSA (3GPP Release 15)/TDD-LTE/FDD- LTE/HSPA+

  Frequency Bands

 5G NR:     N1/N2/N3/N5/N7/N8/N12/N20/N25/N28/N40/N41/N66/N71/N77/N78/N79;

 FDD LTE:   B1/B2/B3/B4/B5/B7/B8/B12/B13/B14/B17/B18/B19/B20/B25/B26/

 B28/B29/B30/B32/B66/B71;

 TDD LTE: B34/B38/B39/B40/B41/B42/B43/B48;

 WCDMA/HSDPA/HSUPA: B1/B2/B3/B4/B5/B8.

Memory

 Flash: 4Gb 8-bit NAND

 RAM: 4Gb 16-bit LPDDR4X at 1.8GHz

Indicators

  2 LED Indicators (PWR, Network signal)

Antenna

 6 Built-in 5G/LTE antennas

SIM

 1 SIM (FF), supports standard 1.8V & 3.3V USIM

USB & Power Supply

 TYPE_C USB3.1, 5V

Compatible OS

 Windows/Linux*/Android*

Power Consumption

<20W

Peak Throughput

5G NR: 1.2 Gbps (UL), 4 Gbps(DL);

FDD-LTE CAT20+: MAX 2.4Gbps(DL),150Mbps(UL);

TDD-LTE CAT20+: MAX 2.4Gbps(DL),150Mbps(UL);

HSPA+: 5.76Mbps(UL), 42Mbps(DL).

Dimension

 98. 5mm* 57. 5mm* 17mm

Weight

 105g

* If the equipment (drone, AGV etc.) with Linux or Android system can act as RNDIS HOST, the 5G Dongle could be plugged in and used directly. If not, the USB driver of the equipment should be modified.



Software Specification



Item

Description

Language

 English, simple Chinese, other languages could be customized.

Https/Http

 Both

  User Login

 Supports two users (admin user and normal user) with different   authorization

SIM Card

 PIN Management; SIM card Authentication

Diagnosis

  Export current diagnosis results and operation logs

Statistics

 Link Status (LAN); Transmit / receive traffic in packets; Up Time

IPV6

 IPv6/IPv4 dual stack

Network Status

 Signal strength, network type, network connection status, operator name,   system mode, SIM card status

Carrier SIM Lock

 Supported


Device Management


Item

Description

Software Update

 Web UI update

 Tr069 update

TR069

 HTTP/HTTPS

 Supports uploading / downloading the ACS specified file

 Supports configuring & querying parameters

 Supports remote upgrade

 Supports cycle monitoring

  Syslog

 Supports syslog function, and syslog could be sent to PC via LAN

Diagnostics

 Supports ping, trace route, tcpdump


Environmental Specification


Item

Description

Operating temperature

 -10~45℃

Storage temperature

 -45~85℃

   Operating

   humidity

 5~95%

Storage humidity

 5~95%
