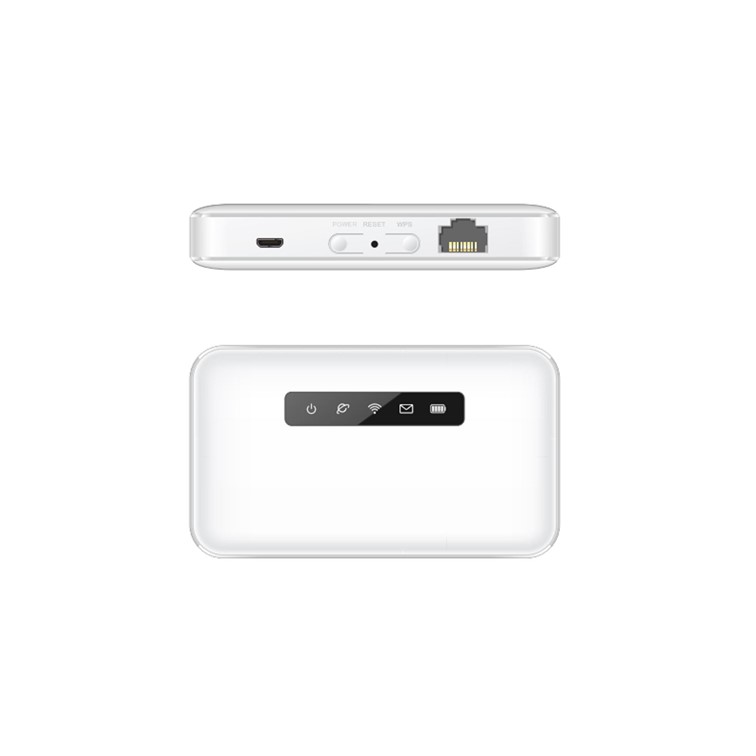

4G LTE MiFi M350

The 4G LTE MiFi M350 is a portable Wi-Fi router with a built-in battery of 2600mAh. It provides users with two options to access to internet: 4G LTE through a data SIM card, and Ethernet WAN through an RJ45 port. M350 is an ideal companion for people to share and enjoy fast Internet outdoors or during a trip by creating a Wi-Fi hotspot.

 Overview



The 4G LTE MiFi M350 is a portable Wi-Fi router that allows multiple end users and mobile devices to share a 4G mobile broadband Internet connection. M350 also provides an option for users to access to Internet through the LAN/WAN port. With a built-in battery of 2600mAh, the mobile router can work continuously for 6-8 hours*.



M350 is suitable for users to share fast LTE network among family members, friends and colleagues when travelling or having activities outdoors, for the purpose of entertainment, study or work. It’s also an ideal choice for small indoor areas to have Wi-Fi hotspot.

* The data is based on one smart phone connecting to Wi-Fi hotspot.





Application Scenarios



1. Internet access through 4G LTE wireless network. The MiFi functions as a 4G mobile Wi-Fi router. And the LAN/WAN port can provide wired internet connection for terminals.




2. Internet access through Ethernet WAN (RJ45). And the MiFi functions as a mini Wi-Fi router.





Specification


Item

Description

Chipset

 ZX297520V3E

LTE Standard

 LTE CAT4, 150 Mbps(DL)/50 Mbps(UL)

  LTE Bands

 TDD: B38/B39/B40/B41;

 FDD: B1/B2/B3/B4/B5/B7/B8/B17/B20/B28

Memory

 ROM: 1Gb

 RAM: DDR2 512Mb

LED

  Power, 4G/3G/2G/WAN Internet, Wi-Fi Switch, Message, Battery

Button

 POWER on/off, WPS, RESET

SIM

 Micro SIM

Power Supply

 1. Power adapter: AC100V~240V, 50Hz~60Hz, DC 5V/1A.

 2. Battery: LI-battery 3.7V/2600mAh

Ethernet LAN

 1* Megabit RJ45 LAN port, can be set to WAN

Wi-Fi

 IEEE 802.11 b/g/n 2.4 GHz, up to 32 concurrent users

Dimension

 105mm* 60mm* 18.5mm

Weight

 300g
